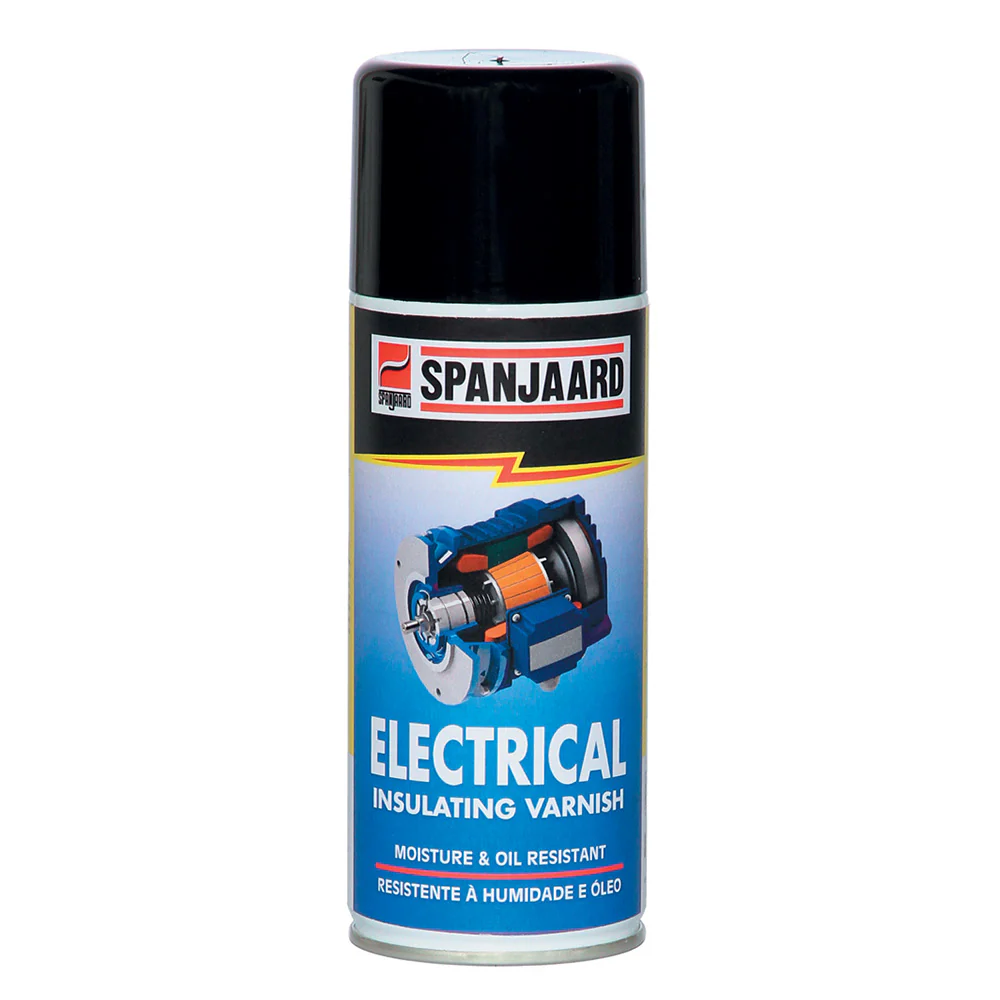

Red Insulating Varnish 350ML

Spanjaard Red Insulating Varnish is a fast drying dielectric coating and insulating medium.

Applications:

• For use on all electrical windings, coils and motor frames.

• Protects against arcing from controller shafts, switch bases and other electrical equipment.

Directions for use:

1) Thoroughly degrease components, preferably with a safety solvent.

2) Shake can well. From a distance of around 25cm apply 1 or more thin even layers, until desired coating thickness is achieved. Allow a drying time of 3 minutes between coats

3) After use, invert can and spray for 3 seconds to clean the nozzle.

Appearance: Brick Red liquid

Features:

• Di-electric Strength , 25o C (IEC 156): 67-74 KV/mm

• Di-electric constant, 25o C: (ASTM D150): 2.9-3.4

• Surface resistivity, 25o C (ASTM D257): 1x1014 ohms/cm2 • Moisture and oil resistant
